SERVO COVERS AND FAIRINGS

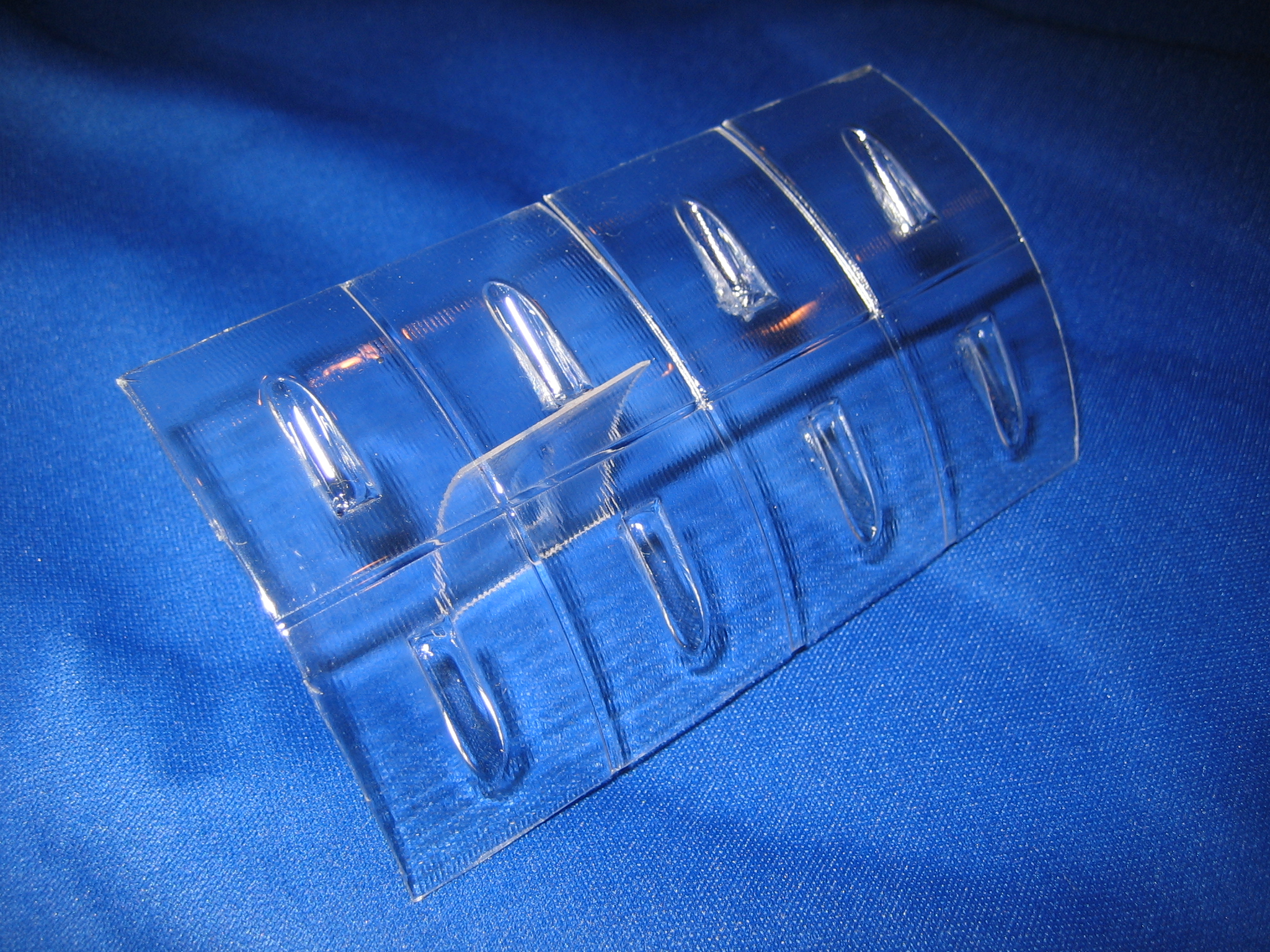

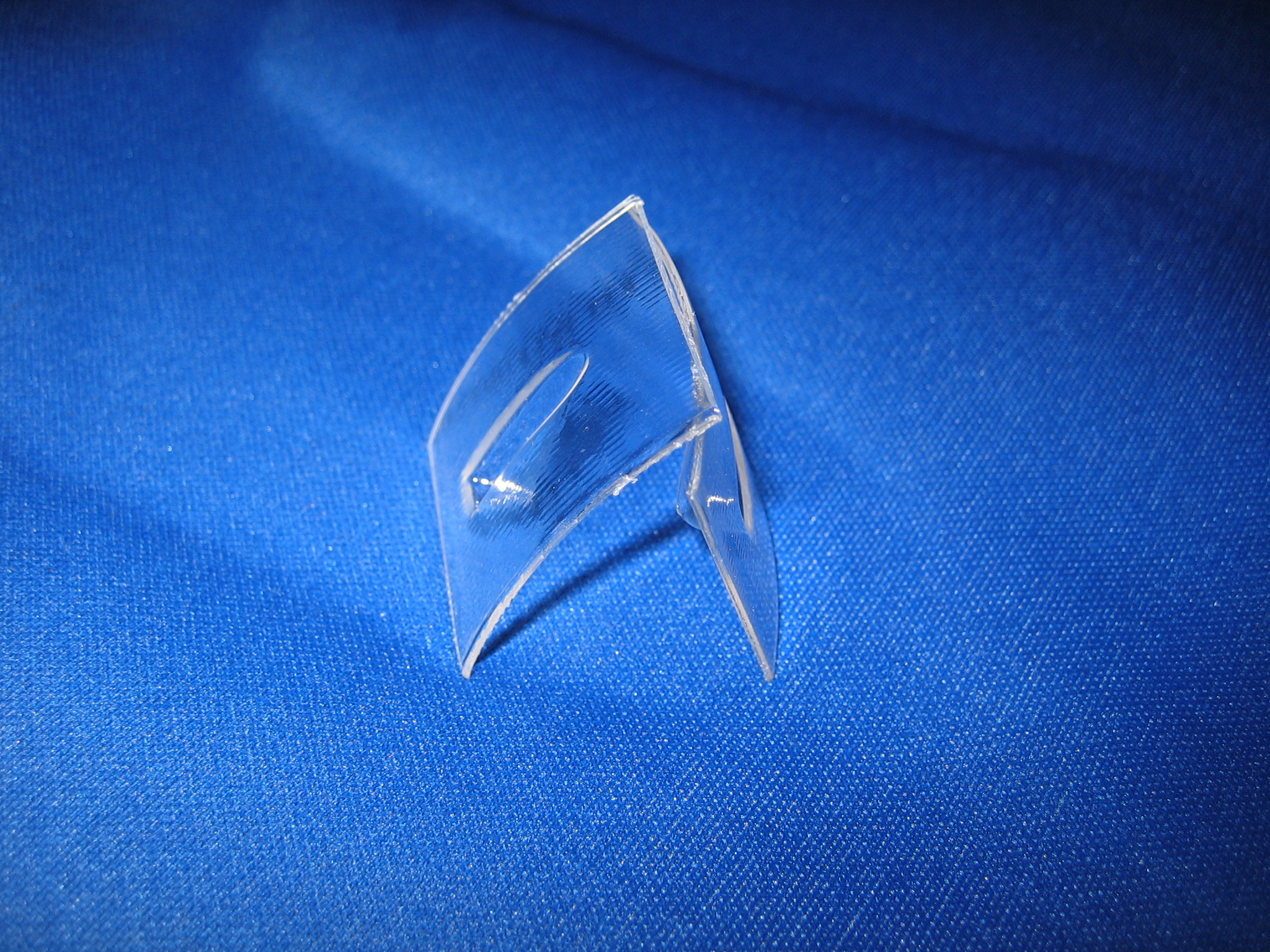

F-16 BOTTOM FUSE SCREW MOUNT
Now made from clear PetG Plastic
Now made from clear PetG Plastic
Plus S&H
$8.95 for 8pc.

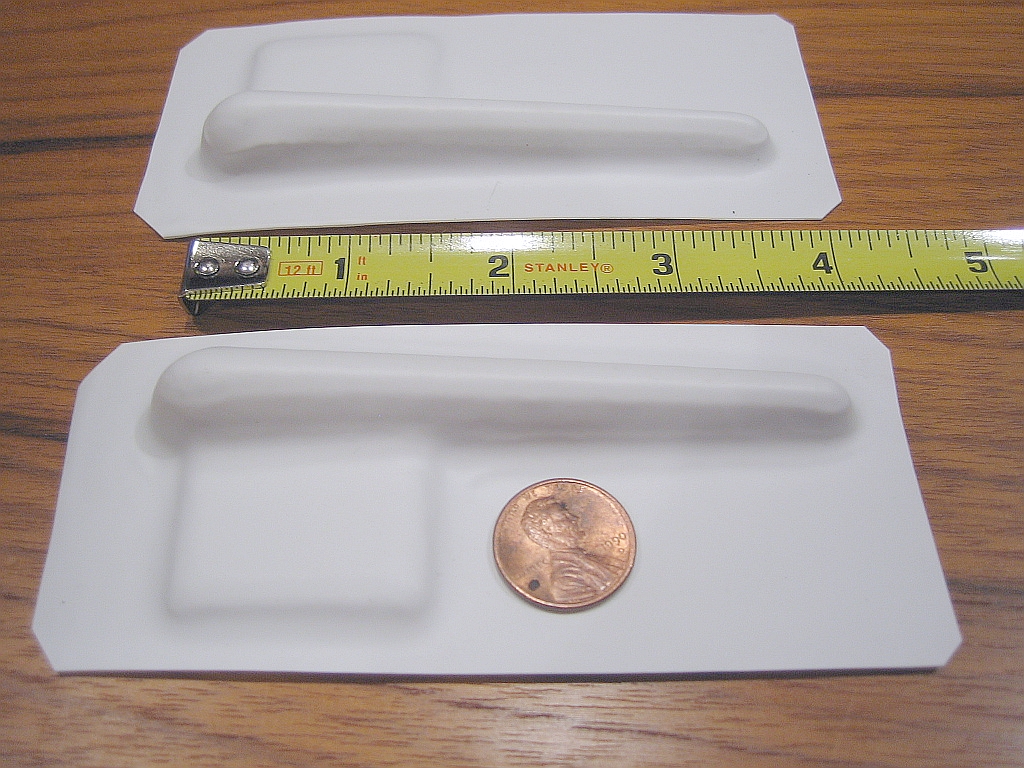

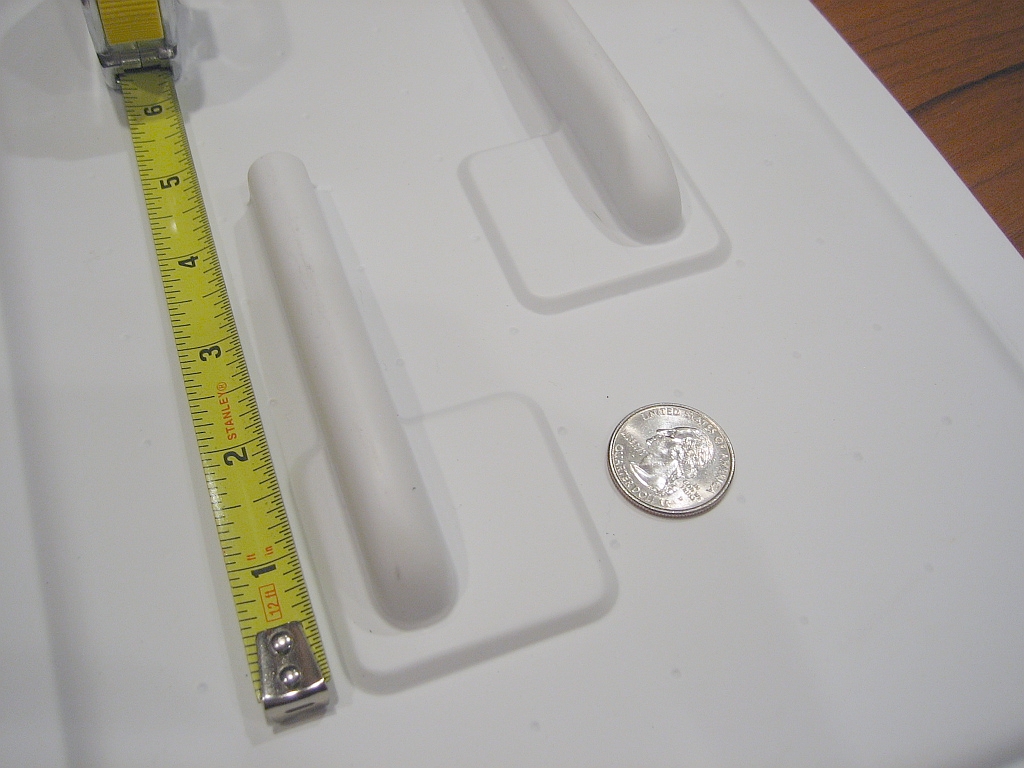

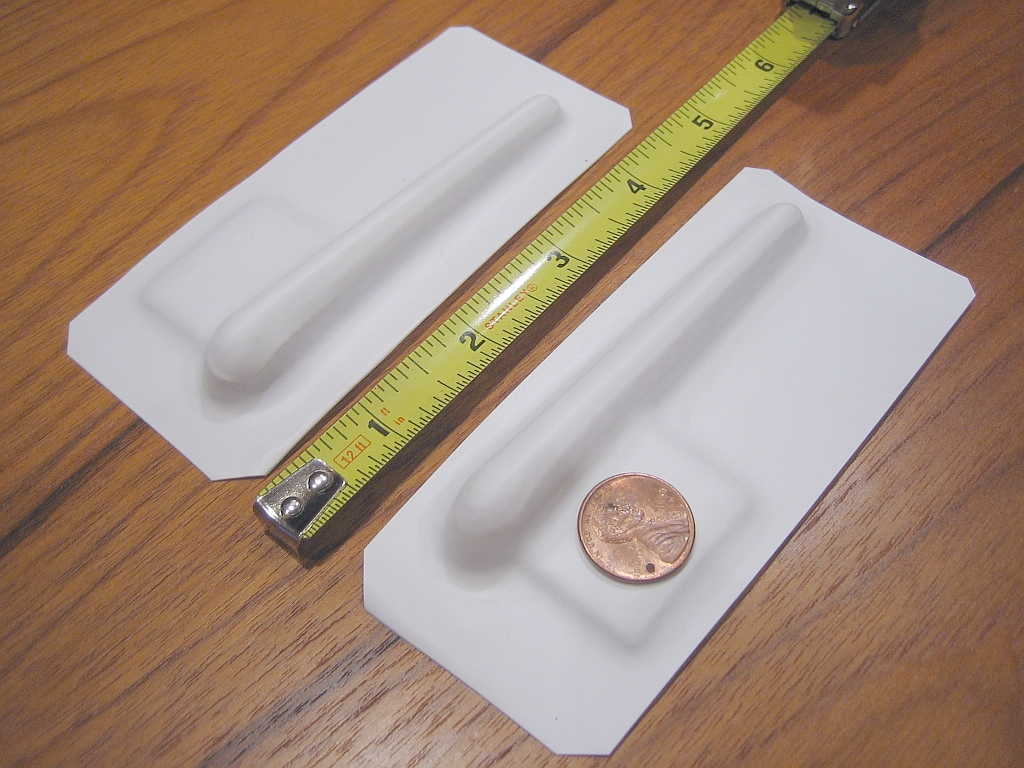

SERVO COVER #17
Large at the front for a big servo arm - tapers to the rear for low profile connecting rod. 2" servo cover area for the recessed servo. Nice shape altogether.
X4.5" Y2" Z.875/.625" Left and right pair.
X4.5" Y2" Z.875/.625" Left and right pair.
Plus S&H
$7.95/pair

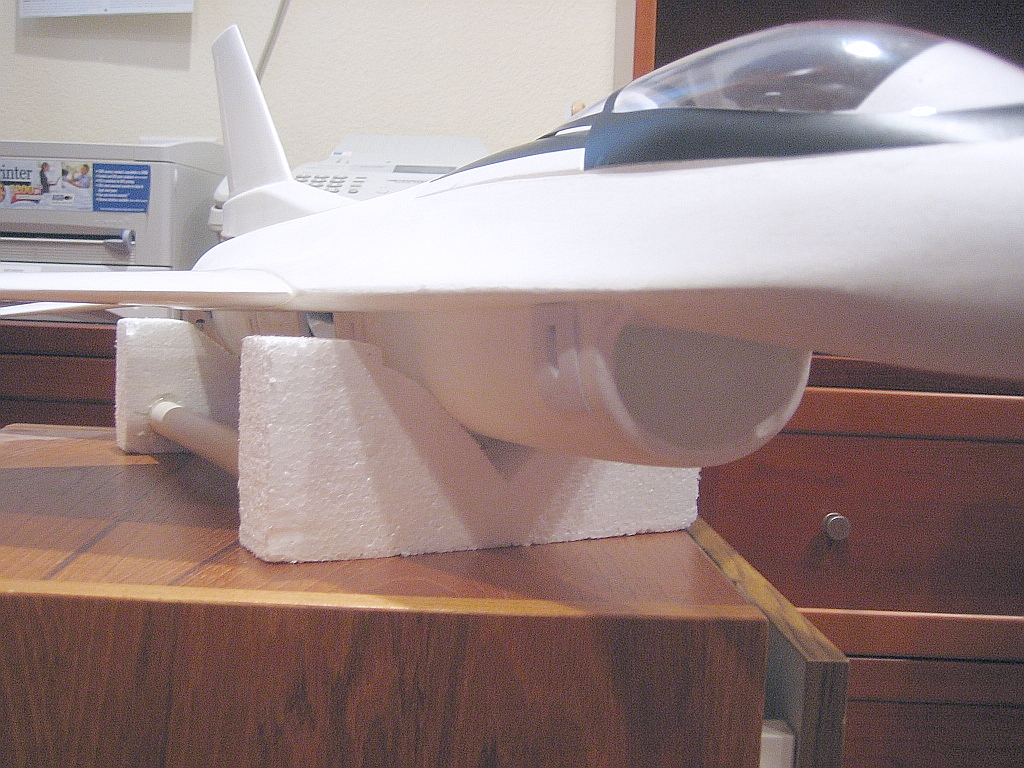

I like the servicing aspect of any design and especially the P3 F-16. This feature provides upgrade possibilities to the power system down the road.

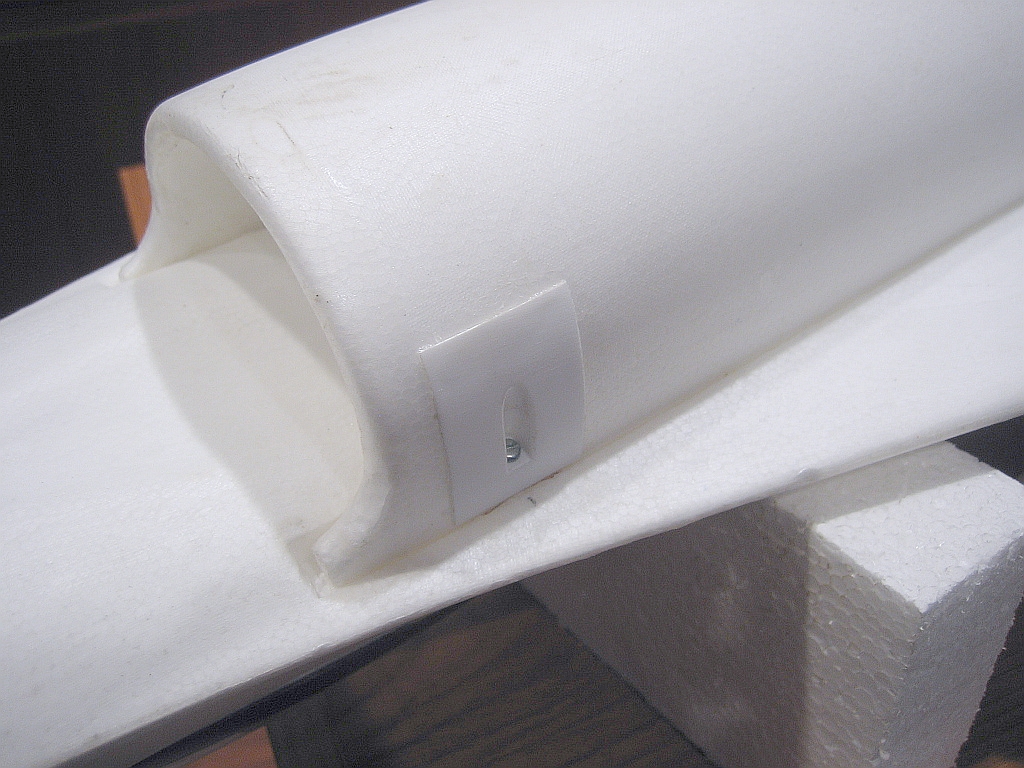

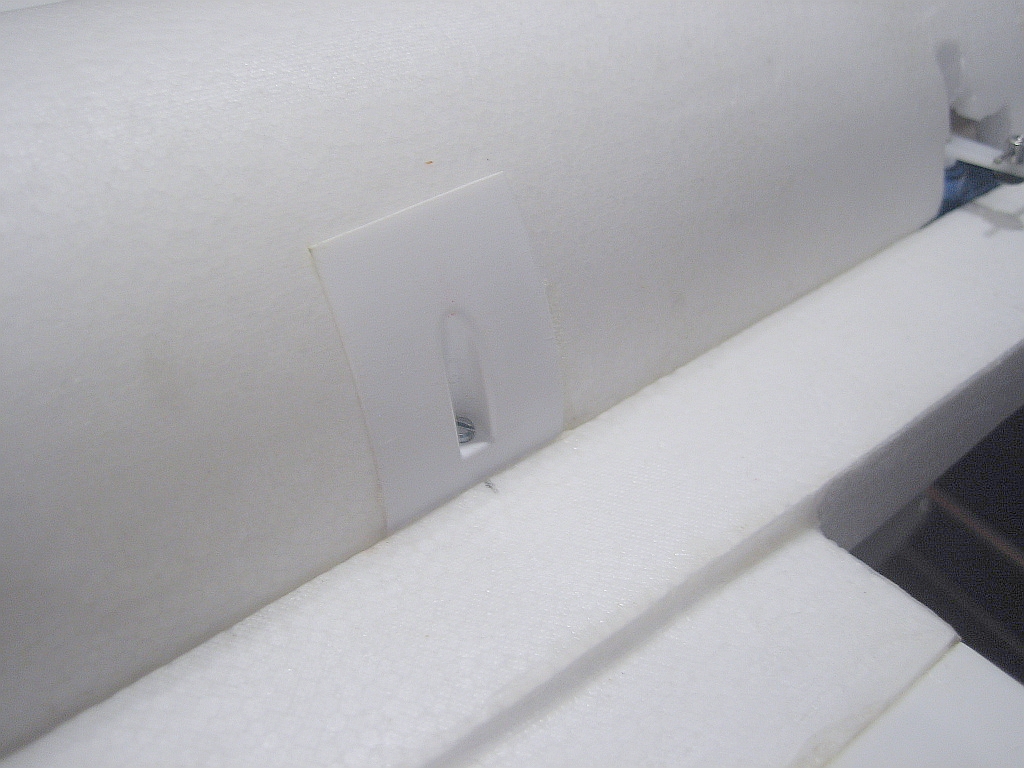

Position the top lip of the screw mount flush with the mating surface of the Belly Pan and mark. Take a Dremel with your choice of tip (I used a grinding stone tip) and make a recess for the screw indentation in the foam to receive the screw mount. I used White Gorilla glue as it will expand and backup the recess when attached to the fuse with included screws. Make sure there are no voids underneath the screw landing. Be careful with the Gorilla glue - don't use too much as it will creep out around the edge and make a mess. Canopy glue works well around the outside edge. Install the bottom fuse. Poke a hole through the flat on the screw mount and mark the upper fuse with the poker. Remove the bottom fuse and mortise in (make flush with mating rail) a small rectangle of lite-ply, Gorilla glue the lite-ply in place. Temporarily re-install the bottom fuse, mark the ply and drill (.040 or 1mm). Run a screw into the hole, back the screw out and run some thin CA in the hole to harden the threads in the ply. Let dry and then install the bottom fuse and wha-La! you are ready-5.
Position the top lip of the screw mount flush with the mating surface of the Belly Pan and mark. Take a Dremel with your choice of tip (I used a grinding stone tip) and make a recess for the screw indentation in the foam to receive the screw mount. I used White Gorilla glue as it will expand and backup the recess when attached to the fuse with included screws. Make sure there are no voids underneath the screw landing. Be careful with the Gorilla glue - don't use too much as it will creep out around the edge and make a mess. Canopy glue works well around the outside edge. Install the bottom fuse. Poke a hole through the flat on the screw mount and mark the upper fuse with the poker. Remove the bottom fuse and mortise in (make flush with mating rail) a small rectangle of lite-ply, Gorilla glue the lite-ply in place. Temporarily re-install the bottom fuse, mark the ply and drill (.040 or 1mm). Run a screw into the hole, back the screw out and run some thin CA in the hole to harden the threads in the ply. Let dry and then install the bottom fuse and wha-La! you are ready-5.

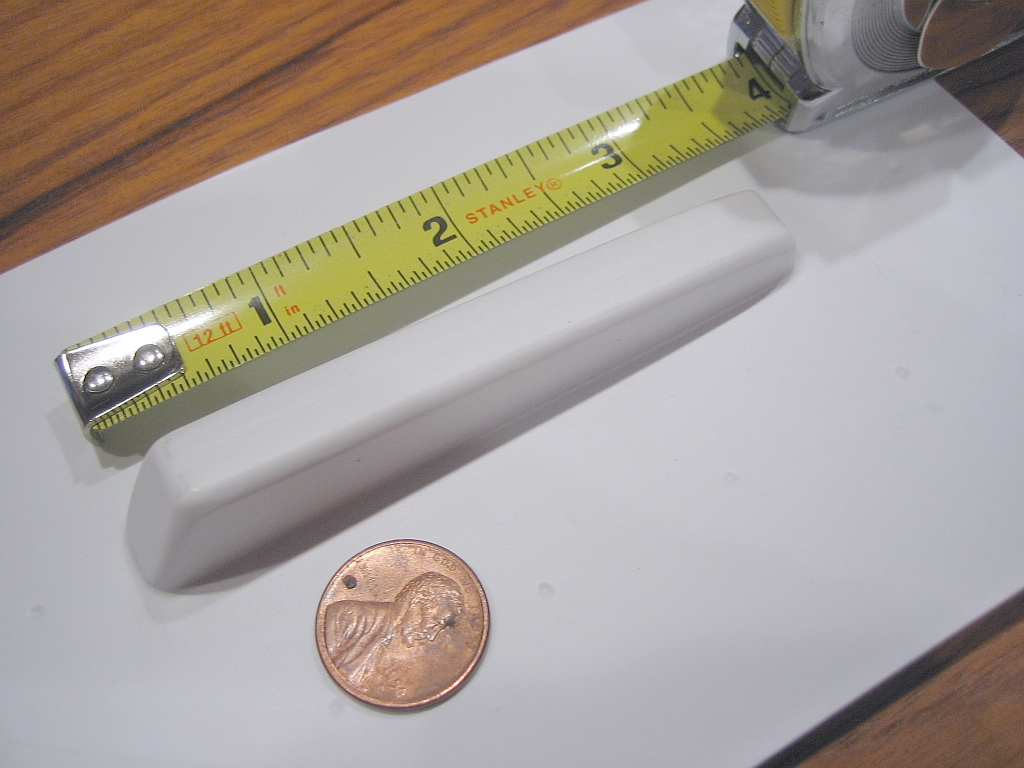

SMALL TAPER FAIRING (WHT)
Plus S&H
$5.95/pair
For those things that need a tapering fairing or cover.
General purpose. X3.75" Y.375" Z.5/.25"
General purpose. X3.75" Y.375" Z.5/.25"
For those things that need a low profile fairing or cover
General purpose. Slight arc conforms to wing
X4" Y1.5" Z.5/.25"
General purpose. Slight arc conforms to wing
X4" Y1.5" Z.5/.25"

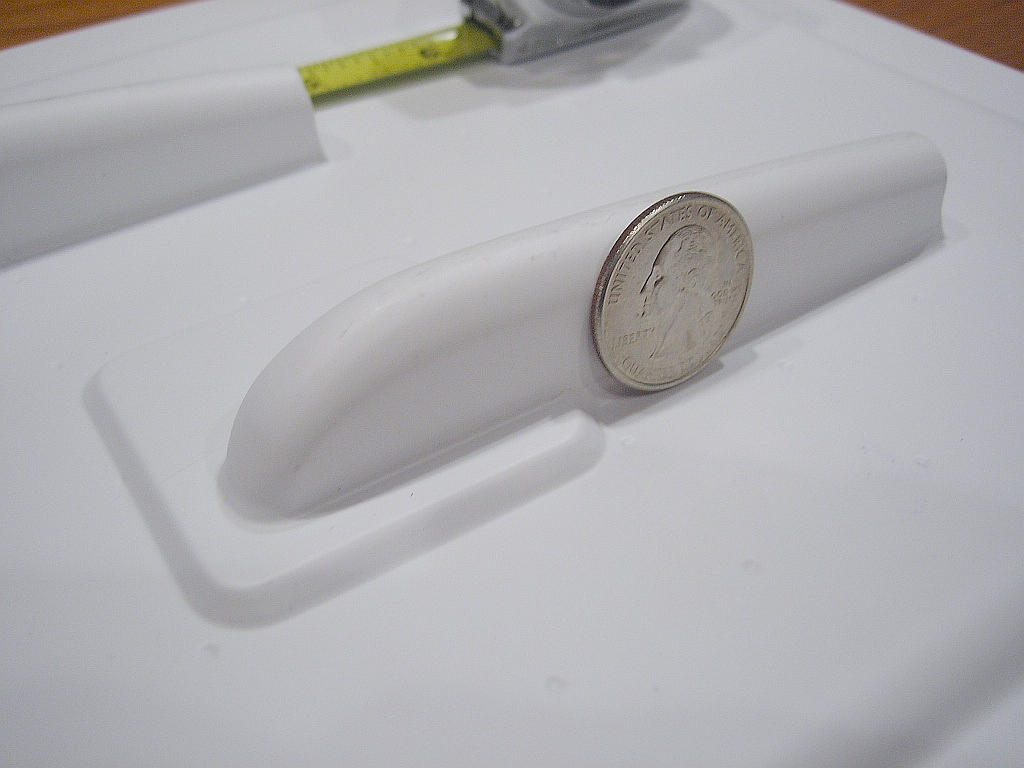

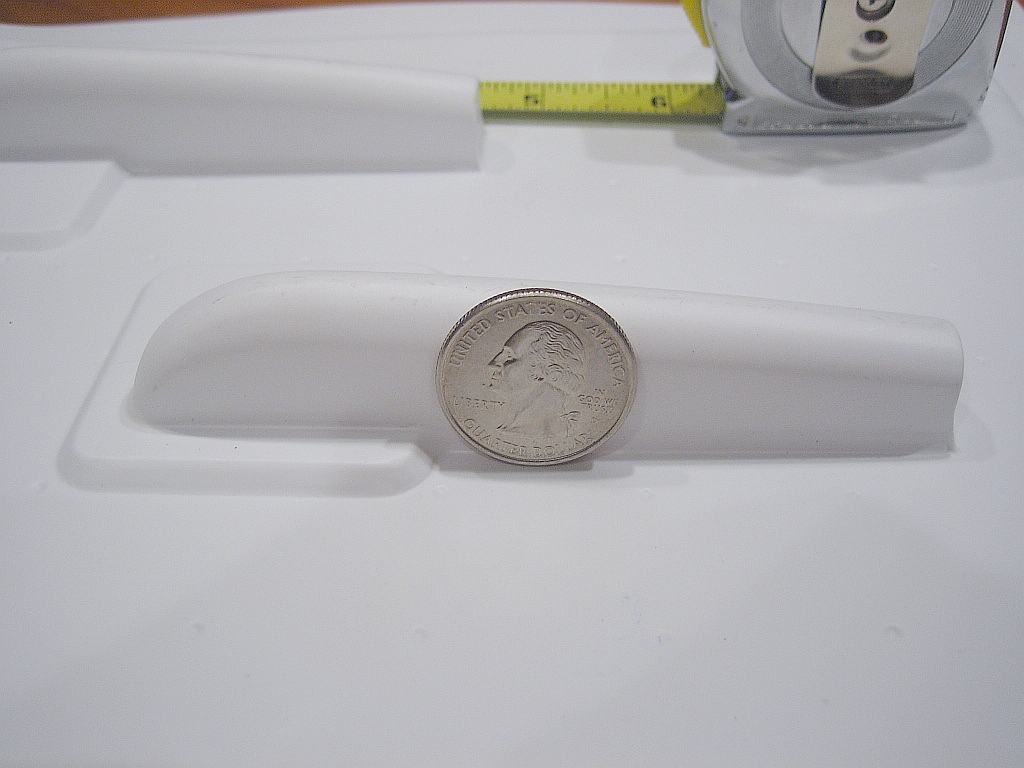

LOW PROFILE FAIRING
Plus S&H
$7.95/pair
SMALL FRY FAIRING
Plus S&H
$3.95/each
For those things that need a low profile fairing or cover
General purpose. X3.75" Y.375" Z.5/.25"
General purpose. X3.75" Y.375" Z.5/.25"

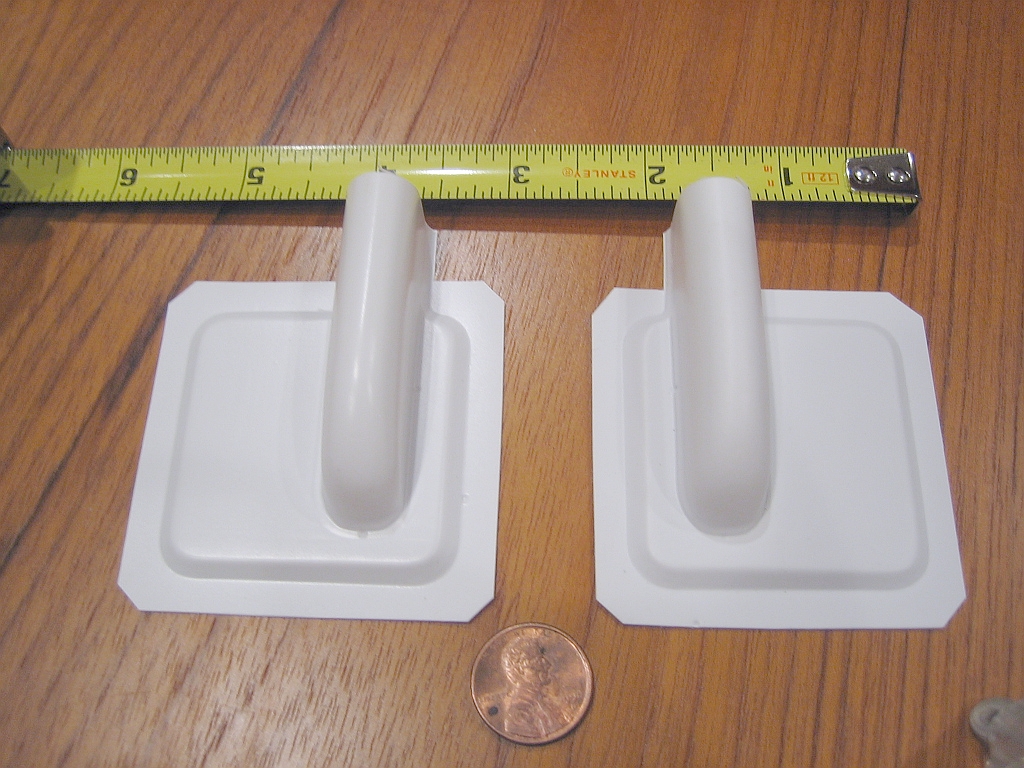

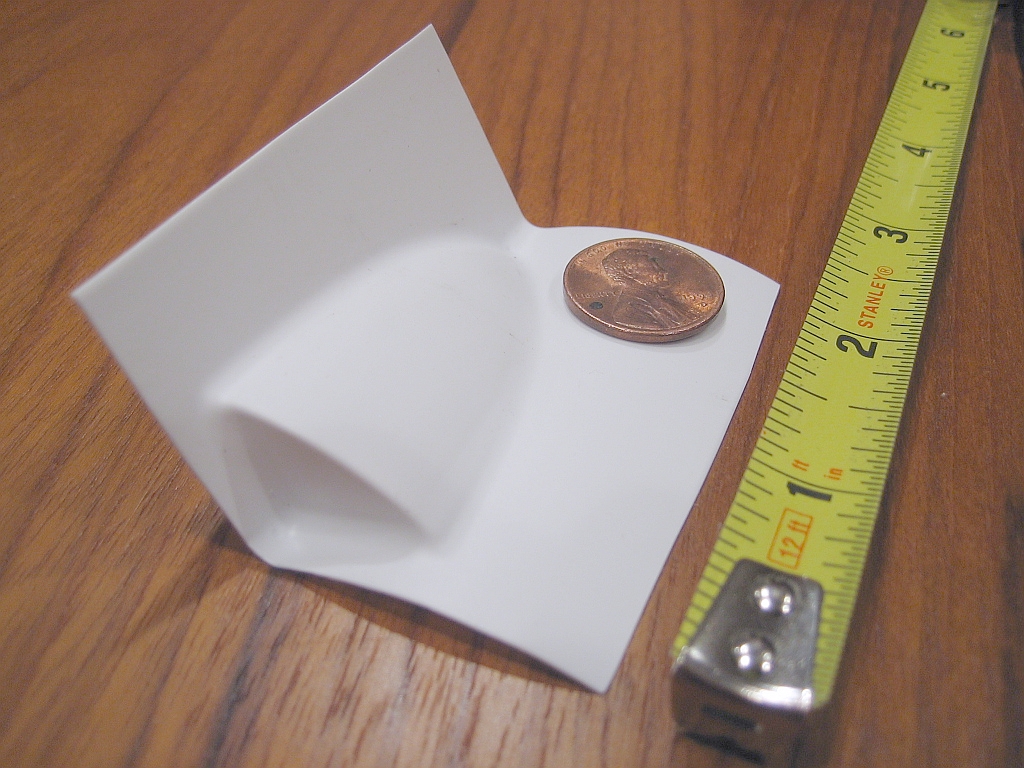

FLAT TO ROUND FUSE FAIRING
Underwing to round fuse joiner fairing, cheater hole
scoope or servo arm cover. X"Y"Z" approx. from picture. Left and right pair.
scoope or servo arm cover. X"Y"Z" approx. from picture. Left and right pair.
Plus S&H
$7.95/pair

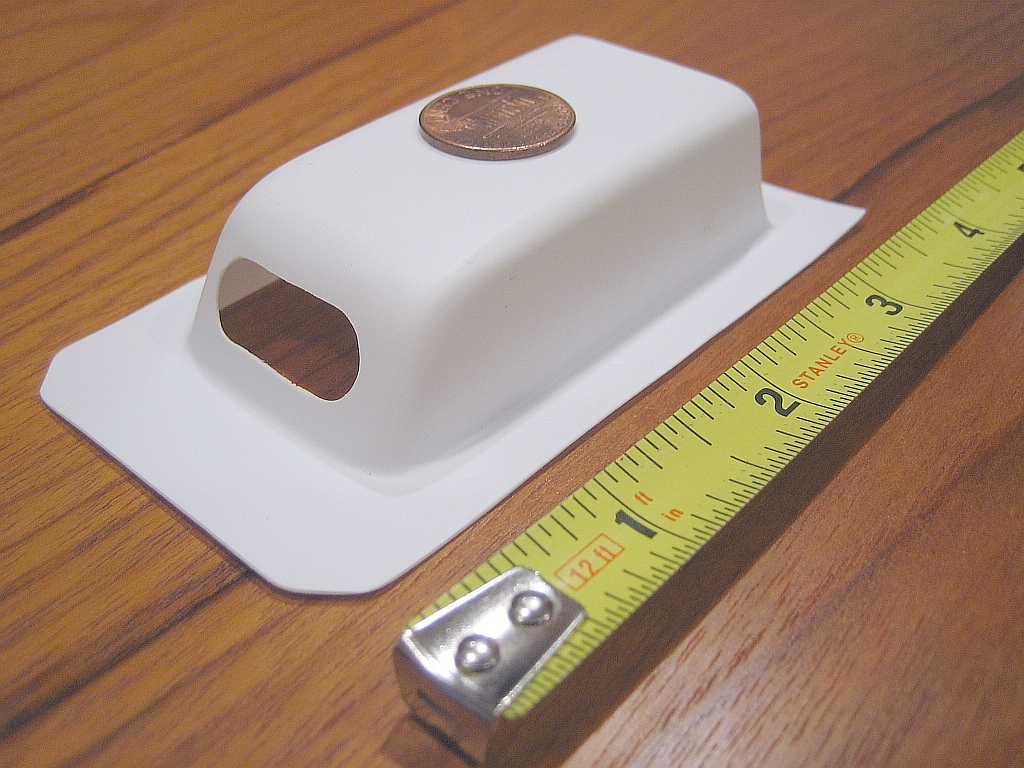

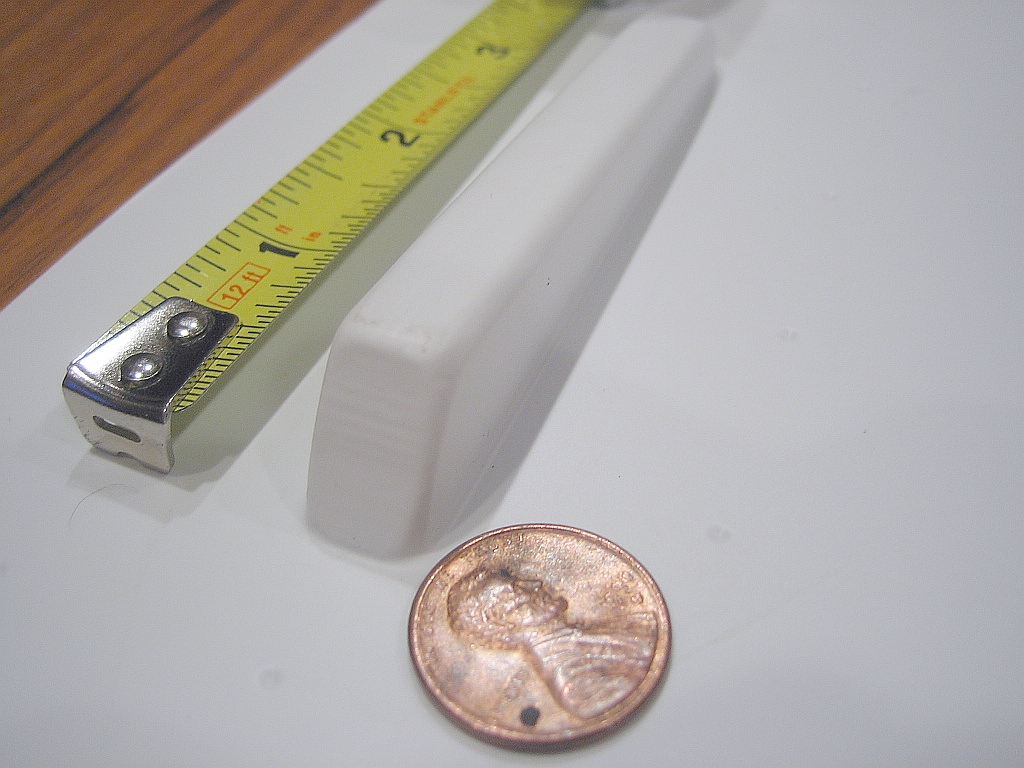

BATTERY COVER / FAIRING
Built this to protect a battery in WildWing full contact
combat - What a hoot... X2.75" Y1.375" Z.75"
combat - What a hoot... X2.75" Y1.375" Z.75"
Plus S&H
$3.95/each

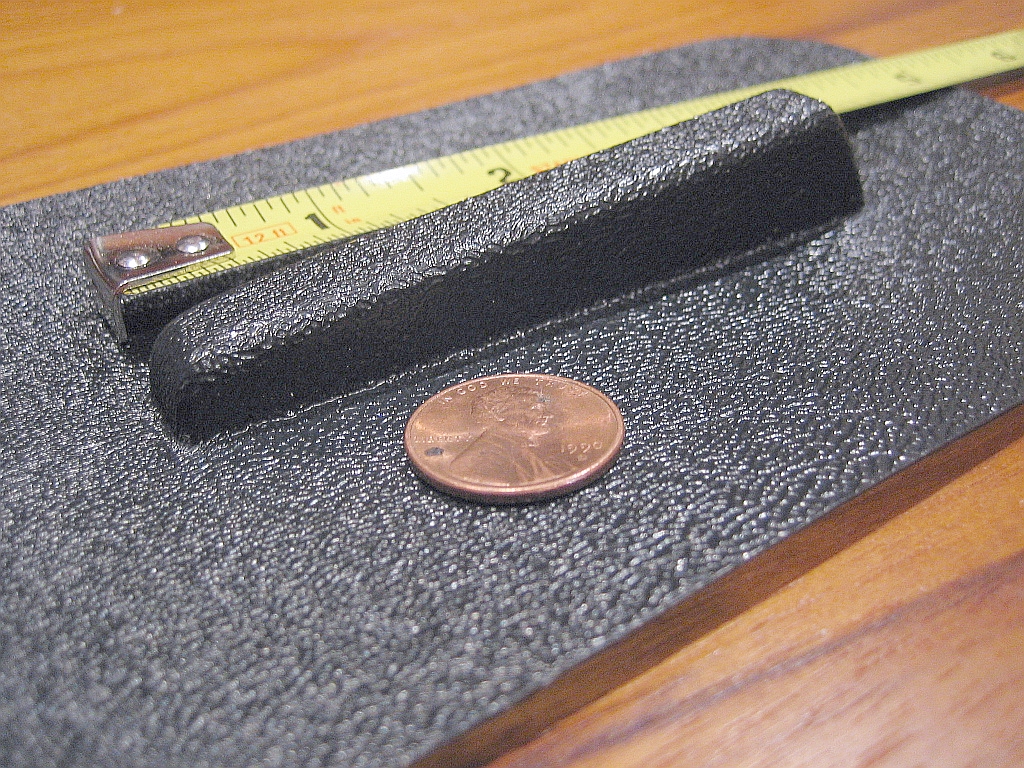

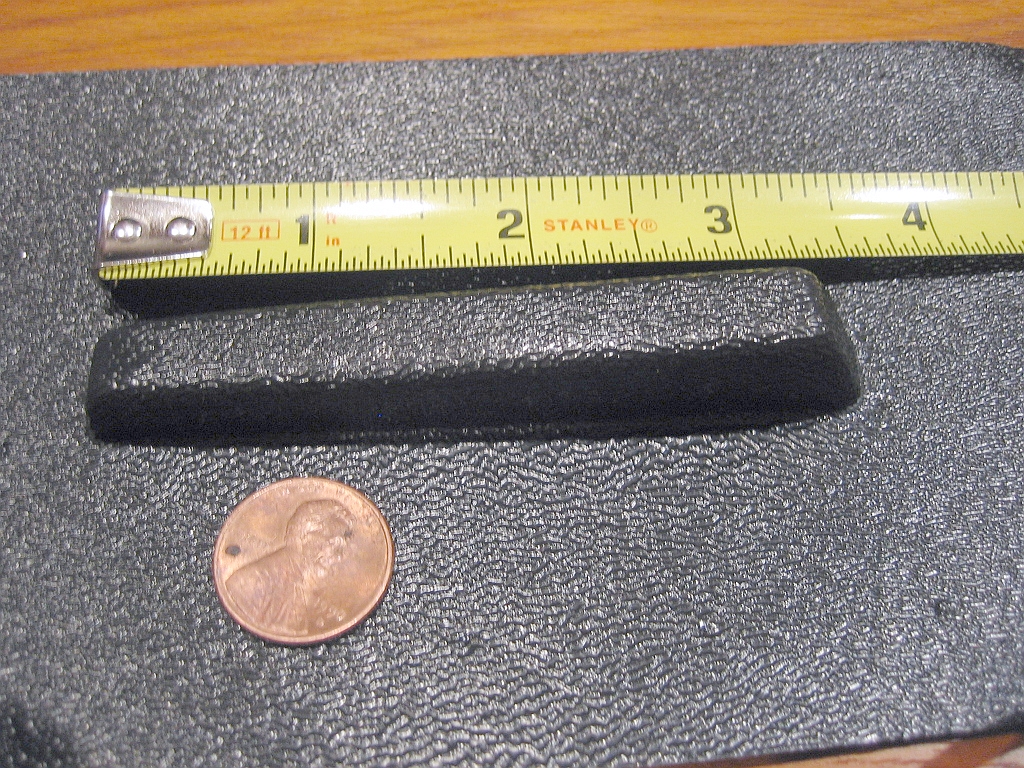

SMALL TAPER FAIRING (BLK)
Plus S&H
$5.95/pair
For those things that need a tapering fairing or cover.
General purpose. X3.75" Y.375" Z.5/.25" Black Hair Cell ABS
General purpose. X3.75" Y.375" Z.5/.25" Black Hair Cell ABS

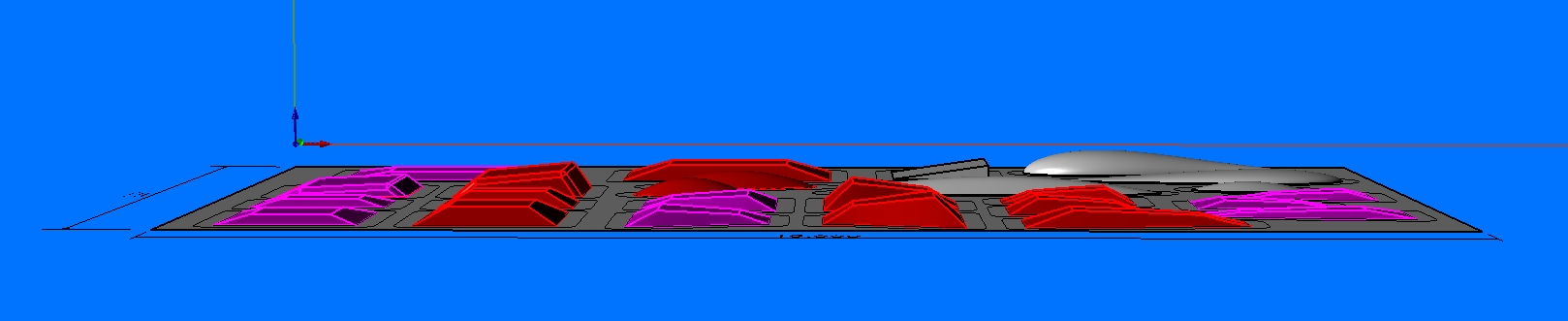

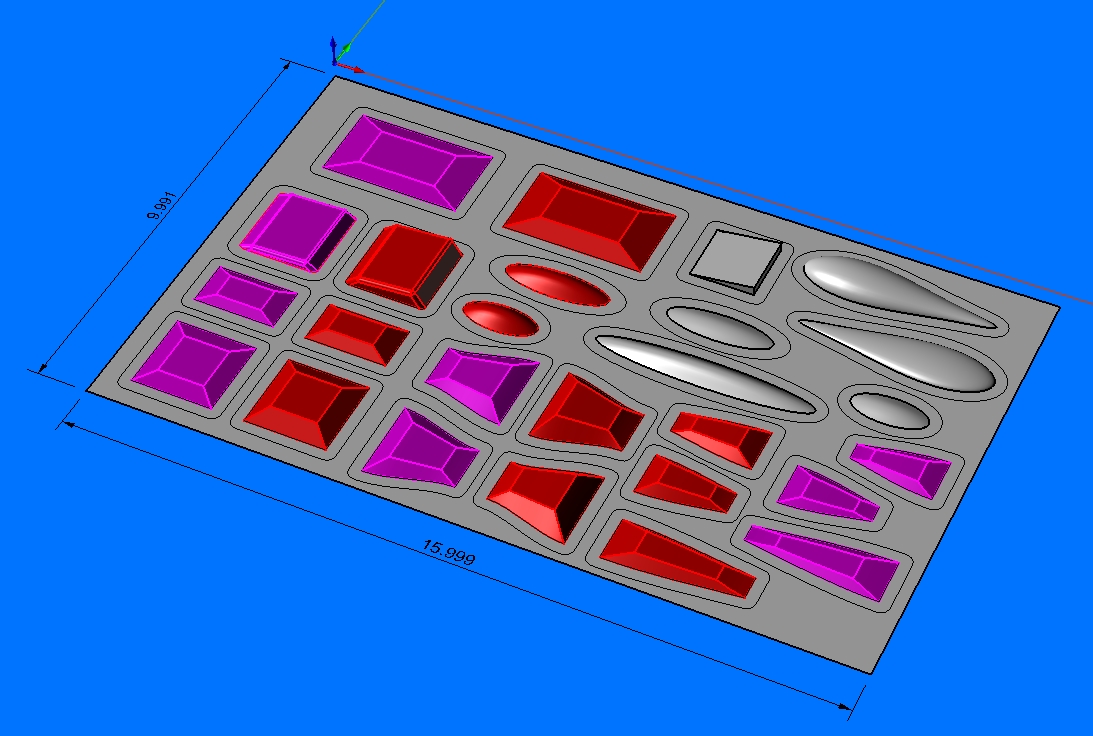

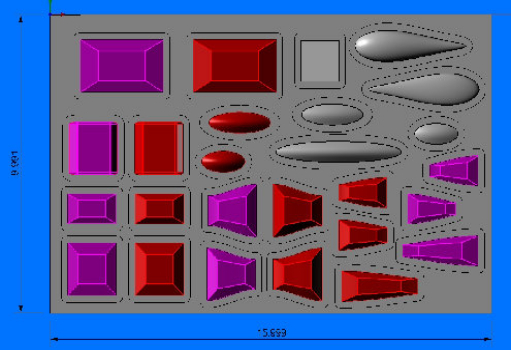

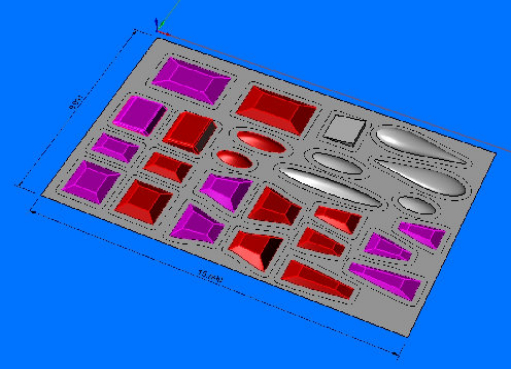

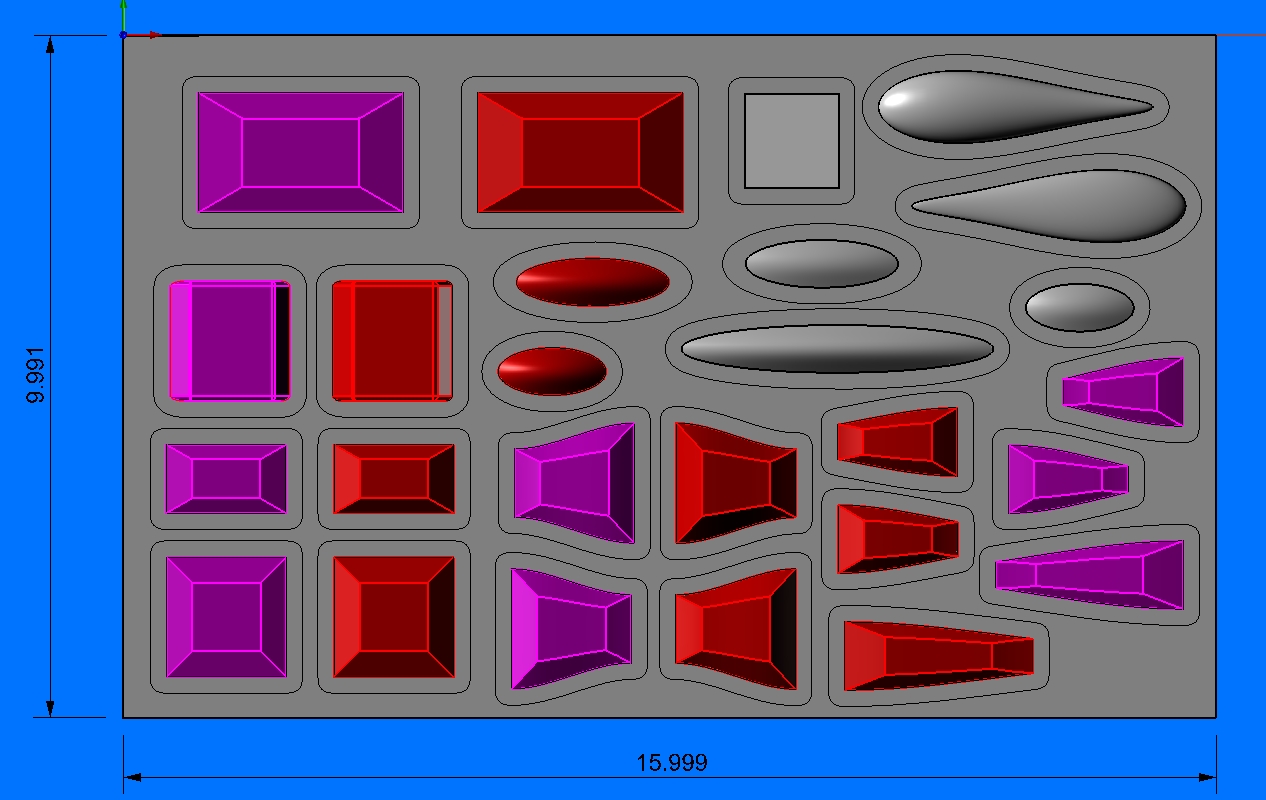

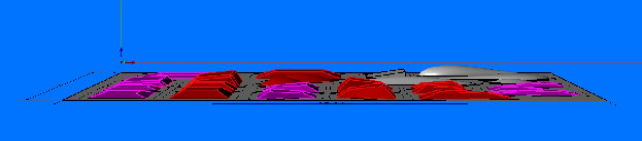

All molds for servo covers, fairings and screw mount are CNC machined in our contract production machine shop. We can do custom orders and shapes for reasonable fees. See our machine shop page for more information.
SERVO COVER #4
This little beauty is something everyone needs. It protects the servo from damage hang ups and weather. Cut a slot in the side and adjust the servo linkage or 2 holes in the front and use as an air scoop.
X3..25" Y1.5" Z.625"
X3..25" Y1.5" Z.625"
Plus S&H
$5.95/pair

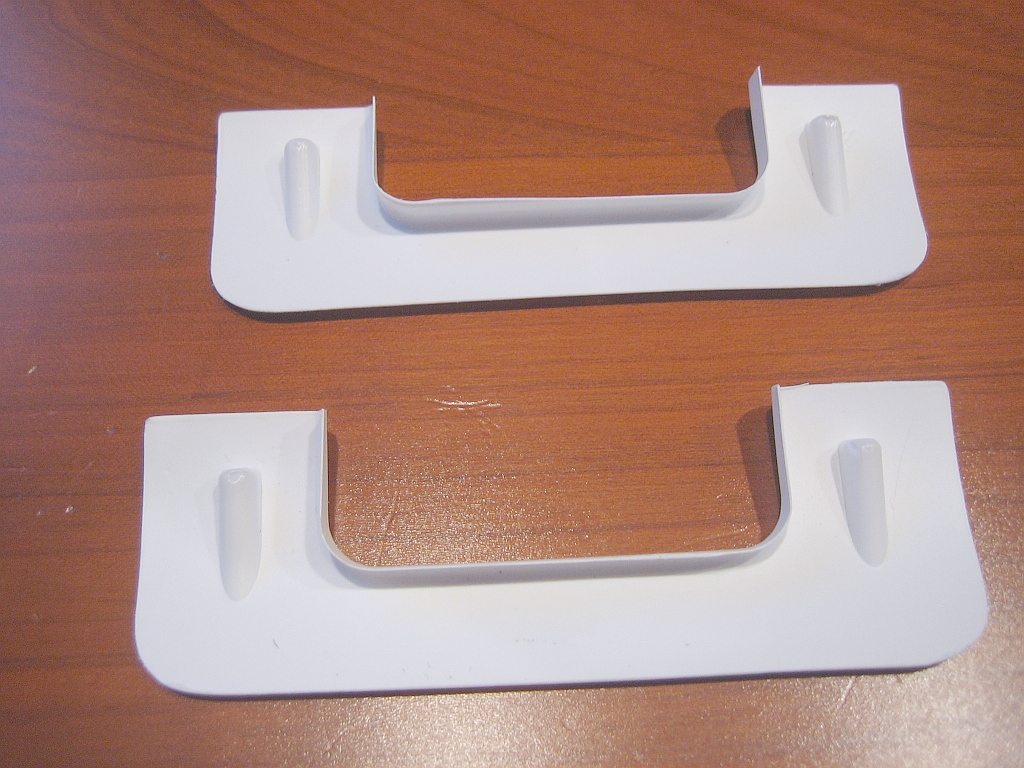

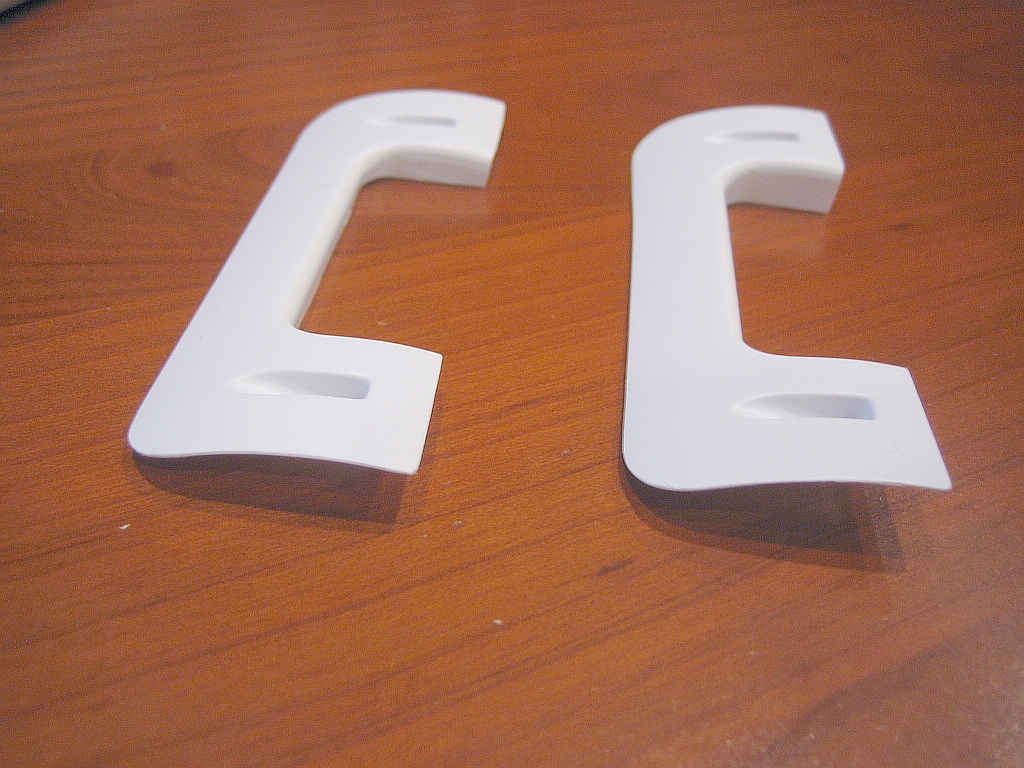

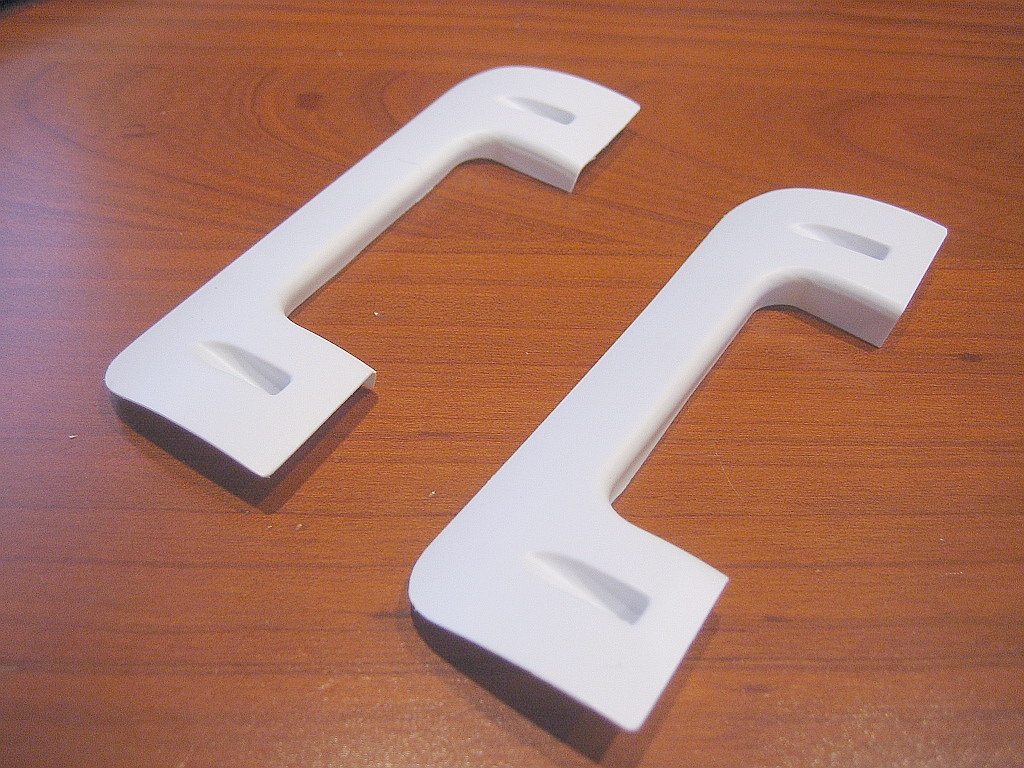

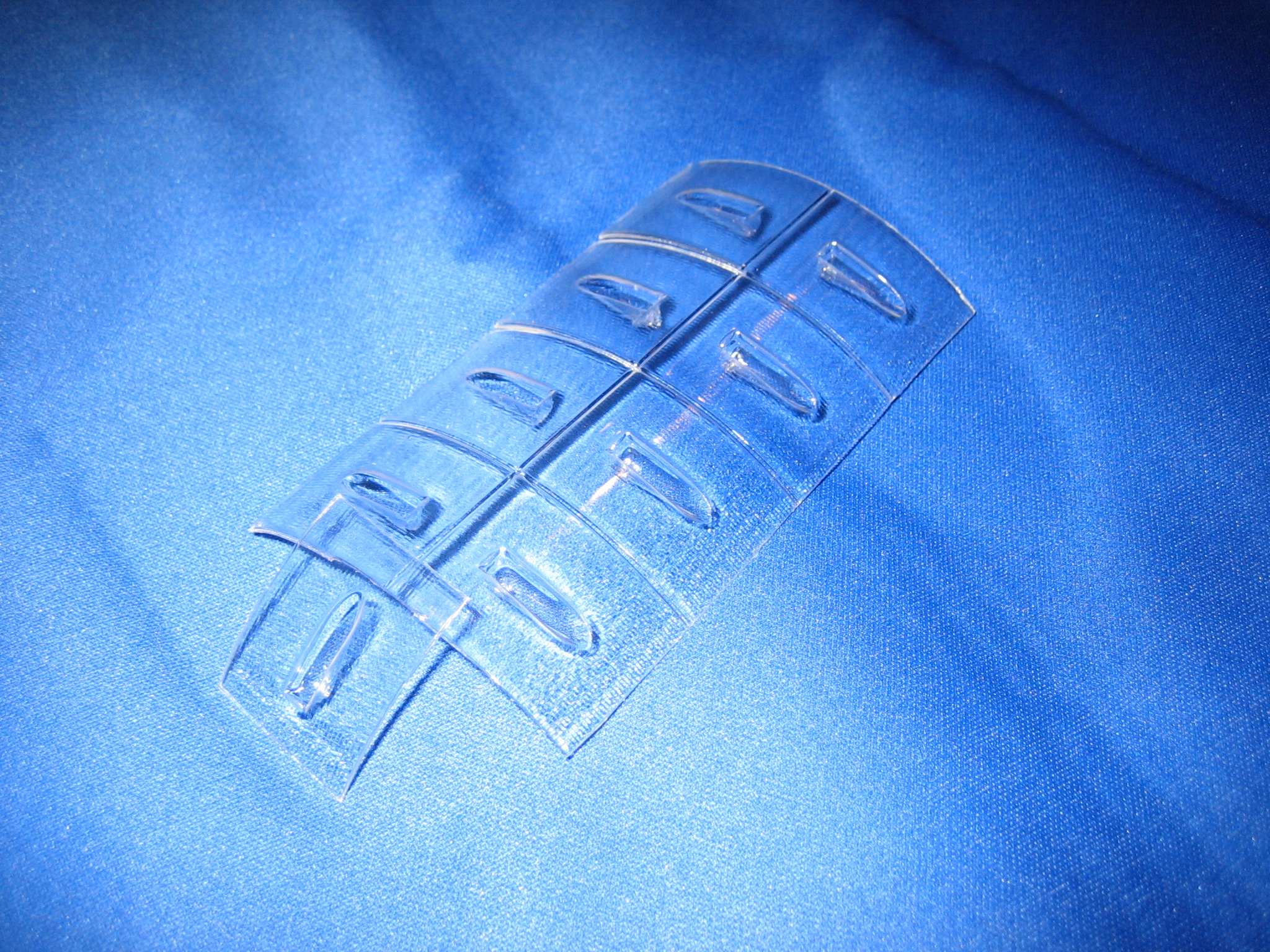

Cheater Hole Support & Screw Mount for the P3 F-16. This provides support and screw mounts at the weak point in the fuse. A great addition to the screw mounts above. X4" Y1.375" Left and right pair.
Now made from clear PetG Plastic
Now made from clear PetG Plastic
Plus S&H
$6.95/pair
